Thông tin chi tiết sản phẩm:
Thanh toán:
|
| đường kính dây: | 2mm | mở lưới: | 1/2" x 1/2" |
|---|---|---|---|
| Kích thước: | Chiều rộng 1,20m x Chiều dài 100m | Tên: | Vải lưới vonfram |
| Vật liệu dây:: | Dây thép không gỉ | Sử dụng chung:: | Phân tích trong của tôi |
| Tên sản phẩm: | Lưới thép dệt hợp kim nhôm dài 30 m cho lớp nóng chảy và bộ lọc | ||
| Làm nổi bật: | 0.5 Micron Tungsten Wire Mesh,300 Micron Tungsten Wire Mesh,990 |
||

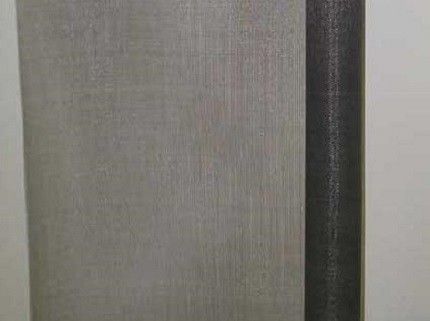

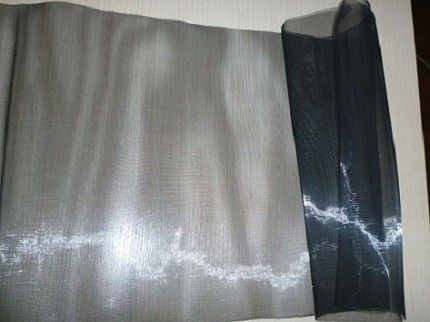

0.5 Micron To 300 Micron 99.9% Pure Tungsten Wire Mesh
Tungsten wire mesh is special due to the metal used. With purity more than 99.9% Tungsten is a greyish white refractory metal, has the highest tensile strength among all metals. The metal has the highest melting point and the lowest vapor pressure. Tungsten is extracted from ores, crushed to become powdery and thereafter mixed and molded to create the wire mesh.
Features of Tungsten Wire Mesh:
Tungsten wire mesh surface is smooth, greaseless and no broken wire. Tungsten wire is with stable nature, large resistance, high melting point, resistance to high temperature of 3400 degrees. Tungsten wire mesh can ba widely used in various mechanical, electrical, air conditioner, filter, vacuum equipment, heating and special purposes.
Applications of Tungsten Wire Mesh:
Electromagnetic shielding mesh, vacuum heat treatment furnace grate, RF electromagnetic shielding, light filtering. Tungsten wire mesh is high temperature resistant and often used as vacuum furnace tungsten mesh heating element, heat treatment supporting wire mesh.
Features:
1. Highest melting point – over 1650C at high temperature
2. Melting point of 3410C
3. Low vapor pressures at high temperature
4. Electrical and thermal conductivity
5. Low coefficient thermal expansion
6. High density
7. High tensile strength at extreme temperature
Specifications:
| Mesh Count | Wire Diameter(mm) | Aperture(mm) | Max Width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: Bright pure tungsten wire, tungsten content ≧99.95%, black pure tungsten wire
Mesh Count: 2-200MESH
Features of Tungsten Wire Mesh:
Tungsten wire mesh surface is smooth, greaseless and no broken wire. Tungsten wire is with stable nature, large resistance, high melting point, resistance to high temperature of 3400 degrees. Tungsten wire mesh can ba widely used in various mechanical, electrical, air conditioner, filter, vacuum equipment, heating and special purposes.
Applications of Tungsten Wire Mesh:
Electromagnetic shielding mesh, vacuum heat treatment furnace grate, RF electromagnetic shielding, light filtering. Tungsten wire mesh is high temperature resistant and often used as vacuum furnace tungsten mesh heating element, heat treatment supporting wire mesh.
