Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Thành phần hóa học: | Fe, C, Si, Mn, S, P | Hợp kim hay không: | Không hợp nhất |
|---|---|---|---|
| Năng lực giải pháp dự án: | thiết kế đồ họa, thiết kế mô hình 3D, giải pháp tổng thể cho dự án | Ứng dụng: | Biệt thự |
| Xử lý bề mặt: | Mạ kẽm nhúng nóng, sơn hoặc không xử lý | chiều dài lưới: | 1000mm |
| chiều rộng lưới: | 800mm | Chiều rộng thanh chịu lực x độ dày: | 25x3mm |
| hình dạng thanh chịu lực: | Loại lưới thép kiểu chữ I trơn, có răng cưa | hình dạng thanh chéo: | tròn, xoắn, hình dạng thanh |
| Kích thước mắt lưới: | 30x100mm | E-mail: | devin@industrialmetalmesh.com |
| whatsapp: | +8615369013183 | ||
| Làm nổi bật: | galvanized steel grating wear resistance,steel grating withstands heavy friction,durable galvanized steel grating |
||

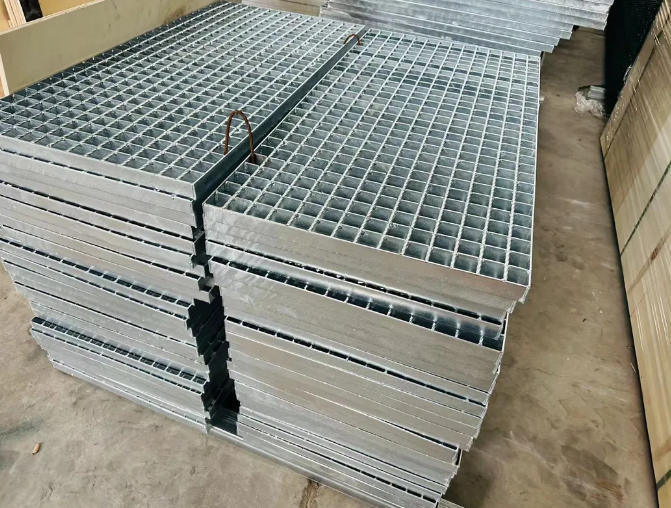

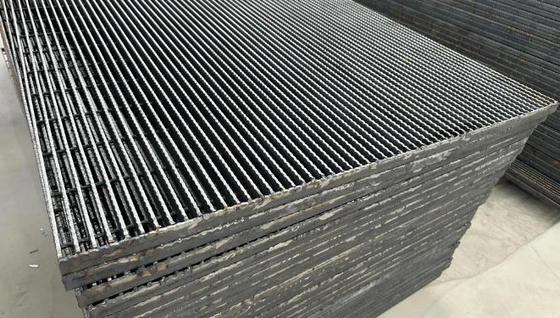

Strong Wear Resistance Galvanized Steel Grating Can Withstand Greater Wear And Friction
Steel grating typically consists of parallel and perpendicular steel bars, with the perpendicular bars welded or locked into place by various methods such as welding, riveting, or swaging. The design of the grating allows for the passage of air, light, and liquids while providing structural support.
Steel grating is extensively used for industrial flooring in factories, warehouses, manufacturing facilities, and industrial plants. Its robust construction provides a stable and safe walking surface for workers while allowing ventilation, drainage, and the passage of light and air.
|
Production name
|
Steel grating
|
|
Material
|
Carbon steel, Stainless steel, Aluminum
|
|
Surface treatment
|
Hot dipped galvanized, Spray-painting, Polished and powder coated
|
|
Bearing Bar type
|
Flat bar, Serrated bar, I-bar, inserting steel grating etc
|
|
Beaing bar size
|
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm
20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
|
Mesh size
|
30*100mm, 40*100mm, 50*100mm,
30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
|
Use to
|
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
|
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
