| Vật liệu: | Dây thép không gỉ | Kiểu: | Lưới dây, Loại Ferrule hoặc Loại thắt nút |
|---|---|---|---|
| Ứng dụng: | Bảo vệ lưới | Phong cách dệt: | Dệt đơn giản |
| Kỹ thuật: | Dệt | Số mô hình: | Lưới dây thép |
| Dịch vụ xử lý: | Dệt | Nguyên liệu thô: | Inox 304 316, Dây mạ kẽm |
| Phụ kiện: | Tất cả có thể được cung cấp | E-mail: | devin@industrialmetalmesh.com |
| whatsapp: | +8615369013183 | ||
| Làm nổi bật: | customized steel wire rope mesh,zoo protective rope mesh fence,stainless steel wire mesh |
||
Customized Steel Wire Rope Mesh for Fences Zoo Protective Rope Mesh
Wire rope mesh (also called cable mesh) is made from robust stainless steel cables(material: AISI304 316). These are linked together by a special method using tin-plated copper (type CX) or stainless steel (types CXE and CXS)ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. It keeps its shape indefinitely and requires very little care or maintenance.
The stainless steel wire rope mesh is composed od 304,304L,316,316L, etc. It is suitable for many fields such as zoos, wild animal parks, ocean parks, sports, acrobatics, home decoration, architectural decoration, and so on.
| Material | stainless steel 304 304L 316 316L etc. |
| Mesh Size | 1x30m 2x30m 4x30m or according to clients' requirements |
| Hole shape | Diamond hole |
| Wire diameter | 1mm~5mm or customized |
| Opening size | 2" x 2", 3" x 3" and 4" x 4".or customized |
| structure | 7*7 or 7*19 |
| surface | Flat and Bright |
| Feaure | Hand knitting, lightweight, high-strength, rustles, eco-friendly, safety, long service life, Corrosion resistant, easy assembly |
The type of stainless steel rope mesh

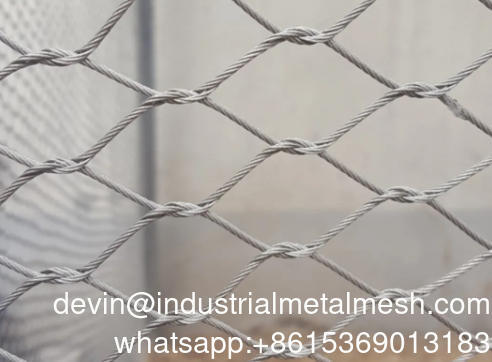

1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

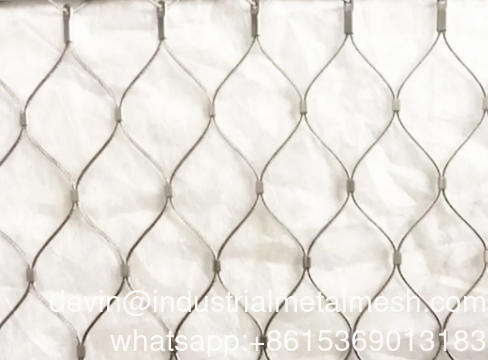

2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Specifications of two kinds of Stainless Steel Wire Rope Net
1:Flexible stainless steel cable mesh (Inter-woven type)
Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh is hand-woven which was also called hand-woven mesh is made from fine SS wire rope. The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
2:Flexible stainless steel cable mesh (Ferrule type)
The ferrule type series is subdivided into aluminum alloy mesh, stainless steel, tinned copper, and nickel-copper mesh by the material of the ferrule. The ferrule-type mesh is more commonly used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellises
systems.
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BR-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BR-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BR-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
| BR-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
| BR-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
| BR-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
| BR-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BR-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BR-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BR-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BR-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BR-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BR-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
