| Vật liệu: | Thép | cường độ dây: | 1770MPA |
|---|---|---|---|
| Đường kính dây: | 3/4mm | Mở lưới: | 103mm x 180mm |
| Làm nổi bật: | high-tensile slope stabilization mesh,metal wire mesh for slopes,tecco mesh with warranty |
||

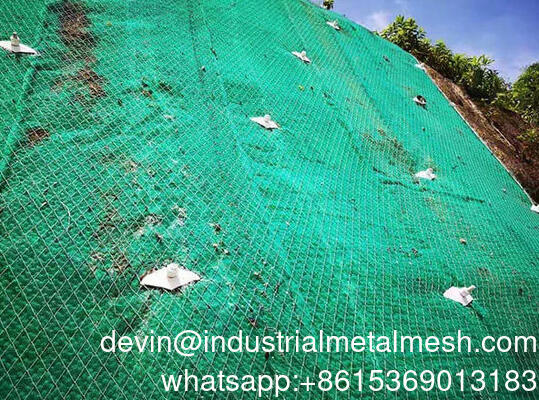

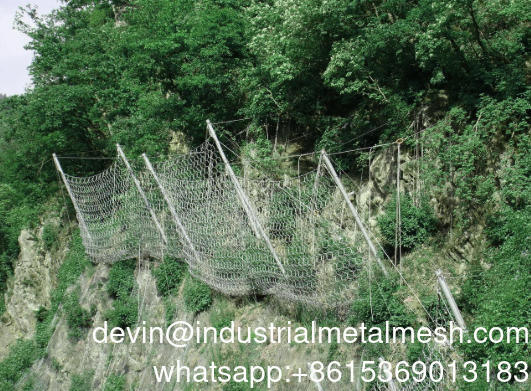

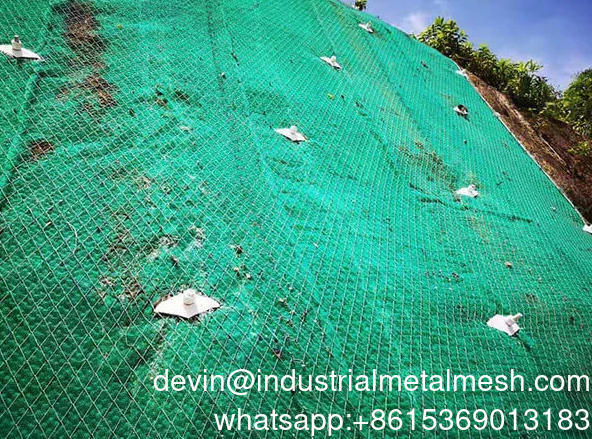

Tecco High-Tensile Mesh in Slope Stabilization
Tecco high-tensile mesh represents a significant advancement in slope stabilization technology. Crafted from high-tensile steel wire, the Tecco mesh system specifically manages and mitigates geohazards like rockfalls, landslides, and erosion on slopes.. This high-tensile strength, which significantly surpasses that of traditional steel meshes, allows for more effective containment and stabilization of soil and rock on steep slopes and embankments.
Tecco high-tensile mesh Strength and Its Importance
High-tensile steel, as used in the Tecco mesh, typically features tensile strengths ranging from 1770 N/mm² for standard products up to 1950 N/mm² for specialized applications. This extraordinary strength is crucial because it allows the mesh to absorb and distribute enormous forces during environmental stresses such as rockfalls or heavy rain, which could otherwise lead to slope failures.
This robust tensile strength enables the Tecco high-tensile mesh system to employ fewer anchor points than systems using conventional steel wire, which can lead to more economical installation and maintenance. The system’s ability to hold up against significant geological forces with minimal deformation makes it an essential component in modern geotechnical engineering for slope stabilization and erosion control.
| Feature | Specification |
|---|---|
| Material | High-tensile steel wire |
| Wire Diameter | 3 mm |
| Tensile Strength of Steel | ≥ 1770 N/mm² |
| Mesh Size | 83 mm x 143 mm |
| Corrosion Protection | GALFAN |
| Load Capacity | Tensile strength of mesh: ≥ 150 kN/m |
| Roll Width | 3.9 m |
| Roll Length | 25.0 m |
| Total Surface per Roll | 97.5 m² |
| Weight per Roll | 200 kg |
| Feature | Specification |
|---|---|
| Material | High-tensile steel wire |
| Wire Diameter | 4 mm |
| Tensile Strength of Steel | ≥ 1770 N/mm² |
| Mesh Size | 102 mm x 177 mm |
| Corrosion Protection | GALFAN |
| Load Capacity | Tensile strength of mesh longitudinal: 190 kN/m |
| Roll Width | 1.5 m – 3.9 m |
| Roll Length | Customizable as per site requirement |
| Total Surface per Roll | Varies with length |
| Weight per Roll | Varies with length and width |
| Feature | Specification |
|---|---|
| Material | High-tensile steel wire |
| Wire Diameter | 2 mm |
| Tensile Strength of Steel | ≥ 1770 N/mm² |
| Mesh Size | Smaller rhomboidal, specific dimensions not listed |
| Corrosion Protection | GALFAN |
| Load Capacity | Tensile strength details not specified |
| Roll Width | Customizable |
| Roll Length | Customizable |
| Total Surface per Roll | Varies with length |
| Weight per Roll | Varies with length and width |
Durability and Performance
The G65/4 mesh is coated with SUPERCOATING, a zinc-aluminum alloy that offers exceptional corrosion resistance, ensuring long-term durability even in harsh environmental conditions. The mesh passes rigorous salt spray tests with minimal rusting, displaying resilience over extensive periods.
Load Capacity and Mechanical Properties:
Installation and Usability
TECCO Mesh G65/4 comes in standard rolls with a width of 11.5 feet and a length of 98.4 feet, covering an area of 1130 ft² per roll. The mesh’s design facilitates easy installation over diverse terrain types, making it an adaptable solution for a wide range of geological settings.
Certifications and Testing TECCO Mesh G65/4
The mesh is rigorously tested and certified according to EAD 230025-00-0106 standards, ensuring its performance in extreme conditions. It is classified in Group 1, Class A, demonstrating its high quality and reliability. The mesh’s performance has been validated under the TÜV Rheinland LGA test report using spike plate P33 / P66.
Applications
TECCO Mesh G65/4 is ideal for:
Maintenance and Longevity TECCO Mesh G65/4
Regular maintenance and inspections are crucial to ensure the longevity and effectiveness of G65/4. Proper care includes monitoring for signs of wear, corrosion, and damage, particularly after significant natural events or in highly corrosive environments.
Conclusion
TECCO Mesh G65/4 is a robust and reliable solution designed to mitigate the risks associated with geological hazards. Its innovative design, combined with high-strength materials and excellent corrosion protection, makes it a leading choice for engineers and safety professionals worldwide in protecting against rockfalls and stabilizing slopes.
