Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | dây thép mạ kẽm | Ứng dụng: | hàng rào an ninh |
|---|---|---|---|
| Kiểu: | Lưới mở rộng | Màu sắc: | Bạc |
| Cách sử dụng: | Sự thi công | Tính năng: | Chống ăn mòn, bền, dễ lắp ráp |
| Xử lý bề mặt: | Mạ kẽm nhúng nóng | Kích cỡ: | như yêu cầu của bạn |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Làm nổi bật: | welded razor mesh panels,razor mesh panels 55x200mm,concertina razor wire panels |
||

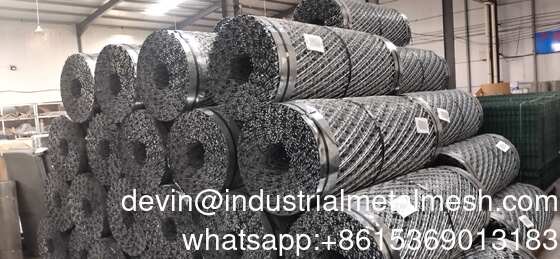

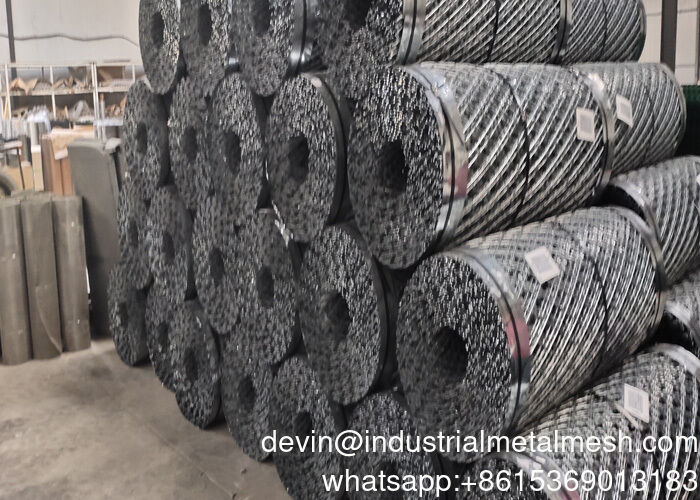

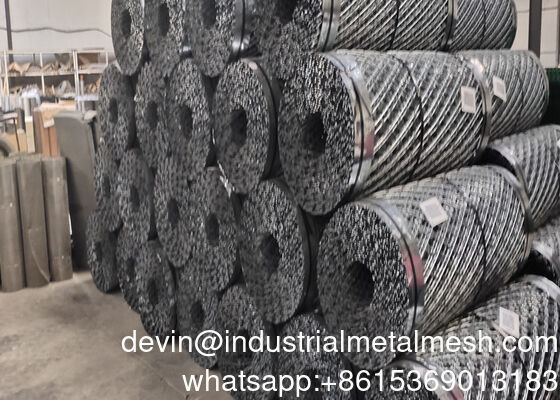

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece
pvc coated galvanized wire is the most popular powder for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties. The PVC coating and the inside wire are firmly bonded together to offer a longer service life. High-density hard PVC (vinyl chloride) coating is applied against the corrosion of common acids and alkalis. The service life is up to 12 years, that is several times that of hot and cold galvanized iron wire. The colors can be customized according to customers needs.
The coating materials of PVC, PE, polyvinyl chloride, can be added with anti-UV, anti-aging additives to achieve enhanced properties.
The wire gauge number, tensile strength, elongation, the amount of zinc and other parameters shall be pre-determined before the plastic coating processing. Average tensile strength for the PVC coated wire ranges from 350N/MM2-900N/MM2, elongation ranges from 8% -15%.
| Type | Razor Mesh(Diamond Hole) | Razor Mesh(Square Hole) |
| Thickness of Sheet | 0.5mm±0.05mm | |
| Wire Diameter | 2.5mm±0.1mm | |
| Height | 1.0m-2.4m | |
| Length | 2.0m-10.0m | |
| Mesh Size | 75mmx150mm 100mmx200mm 150mmx300mm |
150mmx150mm 200mmx200mm 300mmx300mm |
Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an
aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)
| Welded Razor mesh fence | ||||||||
| Name | Core Wire | Sheet | Razor Style | Mesh Aperture | Finished | Size | Package | |
| Welded Razor Mesh | 2.5±0.05mm | 0.5±0.03 mm | BTO-22 BTO-28 BTO-30 |
75X150mm 150X300mm as standard |
HDG or PC coated |
1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m |
In roll or pallet | |
| Name | Welded Razor Mesh Specification | |||
| Welded Razor Mesh | Core Wire | Razor Strip (sheet) | Square Razor Mesh Size | Diamond Razor Mesh Size |
| 2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L |
0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L |
50 × 150 mm 75 × 150 mm 100x150 mm |
75 × 150 mm 150 × 300 mm |
|
| Other Mesh Sizes According to Customers' requirement | ||||
Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.
Application:
Packing:
1. Packing will be different based on the client's request.
2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box
