| Vật liệu: | Dây thép không gỉ, tấm nhôm, dây thép không gỉ304, lưới dây màu đen | Ứng dụng: | màn hình |
|---|---|---|---|
| Kỹ thuật: | đục lỗ | Kiểu: | Lưới mở rộng |
| E-mail: | devin@industrialmetalmesh.com | Whatsapp: | +8615369013183 |
| Làm nổi bật: | SS304H hexagonal metal mesh,hexmetal bonding hole mesh,power plant duct wire mesh |
||

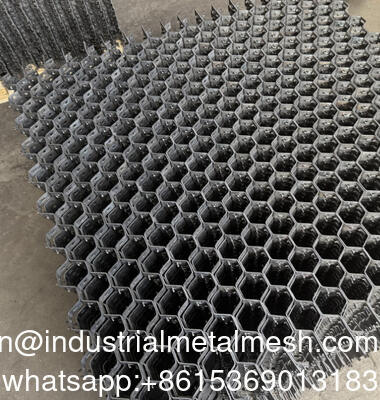

SS304H Hexagonal Metal Mesh Manufacturer Shell Type Bonding Hole Hexmetal 19MM Depth Power Plant Ducts
Besides mesh produced out of wire, we also offer mesh produced out of steel strips: Hexagonal Mesh. The opening in the mesh is hexagonshaped and is also know as hexmesh. Due to the construction, hexagonal mesh has got a very high rigidity that will even last after rolling it into a specific radius. Because of the excellent rigidity, the material is extremely suitable for armouring.
Besides mesh produced out of wire, Mesh Masters also supplies mesh produced out of steel strips: Hexagonal mesh.
Hexagonal mesh, also known as hexmesh, has got a hexagon-shaped opening and is produced out of preformed strips.
Due to the construction, hexagonal mesh has got a very high rigidity that will even last after rolling it into a specific radius.
Because of this excellent rigidity, the material is extremely suitable for armouring.
Hexmesh can be supplied on panels with a standard dimension of
2.000 x 1.000mm., can be cut to customer required dimensions or can be rolled in a specific radius.
Standard our hexmesh is produced in AISI 304H and AISI 410S, but other alloys are available.
Applications of hexagonal mesh are armouring against wearing in cyclone walls and vessels or it can be used as a wall covering in industrial furnaces.
Features:
Hexmetal is a an unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion.
|
Material
|
Stainless Steel Wire
|
|
Type
|
Expanded Mesh
|
|
Hex steel material
|
A3F,0CR13,1CR17,OCR18NI9,SS321,SS316
|
|
Hex steel material thickness
|
1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm
|
|
Mesh size
|
40mm,48mm,50mm,60mm,80mm,100mm
|
|
Product name
|
Hex Mesh
|
|
Usage
|
refractory linings
|
|
Connection Type
|
Inner buckle lock riveting outer buckle lock riveting
|
metal mesh has been manufacturing hex mesh for wear resistant applications for more than 10 years, so we understand the strict performance and technical requirements that exist across a range of industries, such as petroleum refineries, Alumina calciners and cement plants.
Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.
Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
specification:
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Applications:
HexMesh Refractory, from ZhongTeng, is a high quality, durable hexagonal mesh product designed for use in refractory applications. The hexagonal mesh is made from a heavy-duty steel and is available in a variety of sizes and thicknesses to meet your project's needs. HexMesh Refractory is available in 2mm, 1.9mm, and 2.5mm thicknesses, and can also be custom-made to suit your project's specifications.
HexMesh Refractory is certified to ISO9001 standards, and is available in a range of colors including silver, to perfectly match your project's look. The mesh can be bent and cut as needed, and is available in minimum order quantities of 30M2, with a price range of 25-89/M2. HexMesh Refractory can be delivered within 10-25 days, with payment terms of TT or LC accepted. The product is packaged in pallets or wooden boxes and is in stock for immediate supply, with a maximum supply capability of 1300/M2.
Customization:
Hexmesh Refractory
Model Number: ZT--010
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 30M2
Price: 25-89/M2
Packaging Details: Pallets or Wooden Box
Delivery Time: 10-25 Days
Payment Terms: TT Or LC
Supply Ability: 1300/M2
Mesh: 50X50mm
Product Name: HexMesh Refractory
Material: Low-Carbon Steel Or Stainless Steel
Width: 1-2m
Sample: Sample Availible
Highlighted Points:
Hex Grid
Stainless Steel Hex Mesh For Refractory Lining
Thermostable Hexmesh And Anchor For Lining
