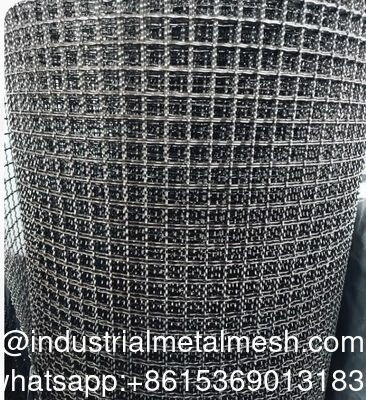

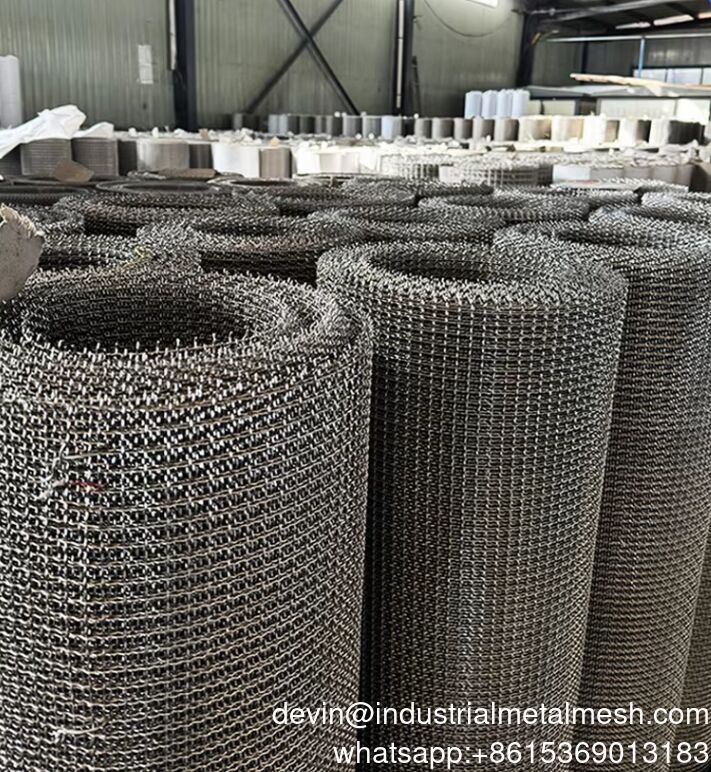

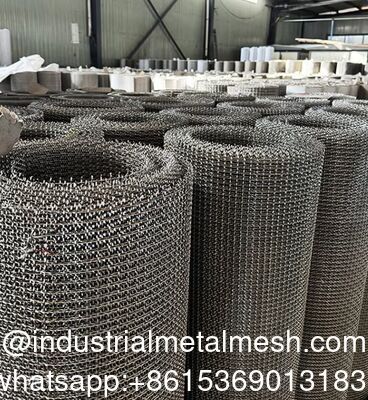

Stainless Steel Woven Wire Mesh Excellent Durability and Strength

Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh, Stainless steel screen mesh, used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food,  also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

• Plain Weave Mesh

  Plain weave mesh is one of the most common metal woven meshes. With high precision mechanical equipment and cutting-edge weaving technology, our plain weave mesh features uniform mesh opening size and good permeability and is widely used in manufacturing mesh screens, filter elements, filter discs, etc. Metallic wires with good corrosion resistance and wear resistance are adopted to extend the service life and improve the performance of woven mesh.


  Use:
  1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
  2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

  Features:
  1. Uniform mesh, good production reproducibility;
  2. Good resistance to acid, alkali and corrosion;
  3. High strength,tensile strength, toughness and wear resistance, long service life;
  4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
  5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

  Item	Details
  Material	304 / 316 / 316L Stainless Steel / other
  Weave Type	Plain Weave
  Mesh Size	1x1 to 635x635 (Customizable)
  Wire Diameter	0.016mm - 5mm
  Width	0.05m - 3m (or Custom)
  Length	1m - 30m (Roll) or Custom Cut
  Surface Treatment	Epoxy Coating / PTFE Coating / Ultrasonic cleaning
  Temperature Resistance	Up to 800°C (1472°F)
  Certification	ISO 9001, ASTM E2016, RoHS
  Packaging	Waterproof Film + Wooden Case



  Table: Specification of Plain Weave Mesh
  Model	Mesh Count	Wire Diameter		Mesh Opening		Open Area
  -	(Warp × Weft)	Inch	mm	Inch	mm	%
  HJ-0185	1x1	0.0799	2.030	0.9200	23.37	85
  HJ-0276	2x2	0.0629	1.600	0.4370	11.1	76
  HJ-0370	3x3	0.0539	1.370	0.2791	7.09	70
  HJ-0456	4x4	0.0629	1.600	0.1870	4.75	56
  HJ-0563	5x5	0.0409	1.040	0.1590	4.04	63
  HJ-0662	6x6	0.0350	0.890	0.1318	3.35	62
  HJ-0860	8x8	0.0279	0.710	0.0968	2.46	60
  HJ-1056	10x10	0.0251	0.640	0.0751	1.91	56
  HJ-1258	12x12	0.0200	0.508	0.0629	1.60	58
  HJ-1446	14x14	0.0229	0.584	0.0480	1.22	46
  HJ-1651	16x16	0.0179	0.457	0.0444	1.13	51
  HJ-1848	18x18	0.0170	0.432	0.0385	0.98	48
  HJ-2046	20x20	0.0159	0.406	0.0338	0.86	46
  HJ-2444	24x24	0.0140	0.356	0.0275	0.70	44
  HJ-3053	30x30	0.0090	0.229	0.0244	0.62	53
  HJ-4036	40x40	0.0100	0.254	0.0149	0.38	36
  HJ-5037	50x50	0.0079	0.203	0.0122	0.31	37
  HJ-6034	60x60	0.0070	0.178	0.0098	0.25	34
  HJ-8032	80x80	0.0055	0.140	0.0070	0.18	32
  HJ-10037	100x100	0.0039	0.100	0.0060	0.154	37
  HJ-12033	120x120	0.0035	0.090	0.0047	0.121	33
  HJ-15042	150x150	0.0024	0.060	0.0042	0.109	42
  HJ-16546	165x165	0.0019	0.050	0.0040	0.104	46
  HJ-18042	180x180	0.0019	0.050	0.0036	0.0911	42
  HJ-20034	200x200	0.0021	0.053	0.0029	0.0740	34
  HJ-25037	250x250	0.0015	0.040	0.0024	0.0616	37
  HJ-30033	300x300	0.0014	0.036	0.0019	0.0487	33
  HJ-32531	325x325	0.0013	0.035	0.0017	0.0432	31
  HJ-35034	350x350	0.0011	0.030	0.00167	0.0426	34
  HJ-40028	400x400	0.0011	0.030	0.00131	0.0335	28
  HJ-50026	500x500	0.00098	0.025	0.00101	0.0258	26
  HJ-63525	635x635	0.00078	0.020	0.00078	0.0200	25
  *We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size
