Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Thành phần hóa học: | Fe, C, Si, Mn, S, P | Hợp kim hay không: | không hợp kim |
|---|---|---|---|
| Năng lực giải pháp dự án: | thiết kế đồ họa, thiết kế mô hình 3D, giải pháp tổng thể cho dự án | Ứng dụng: | biệt thự |
| Xử lý bề mặt: | Mạ kẽm nhúng nóng, sơn hoặc không xử lý | chiều dài lưới: | 1000mm |
| chiều rộng lưới: | 800mm | Chiều rộng thanh chịu lực x độ dày: | 25x3mm |
| hình dạng thanh chịu lực: | Loại lưới thép kiểu chữ I trơn, có răng cưa | hình dạng thanh chéo: | tròn, xoắn, hình dạng thanh |
| Kích thước mắt lưới: | 30x100mm | E-mail: | devin@industrialmetalmesh.com |
| WhatsAPP: | +8615369013183 | ||
| Làm nổi bật: | heavy duty stainless steel grating,sturdy inspection stairs grating,galvanized steel grating with warranty |
||

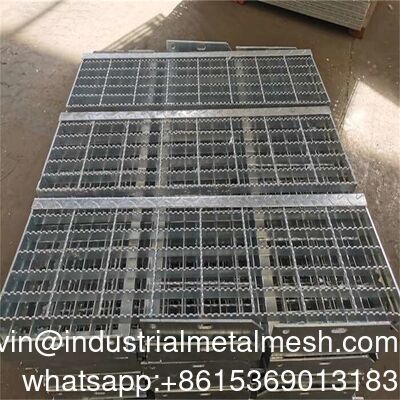

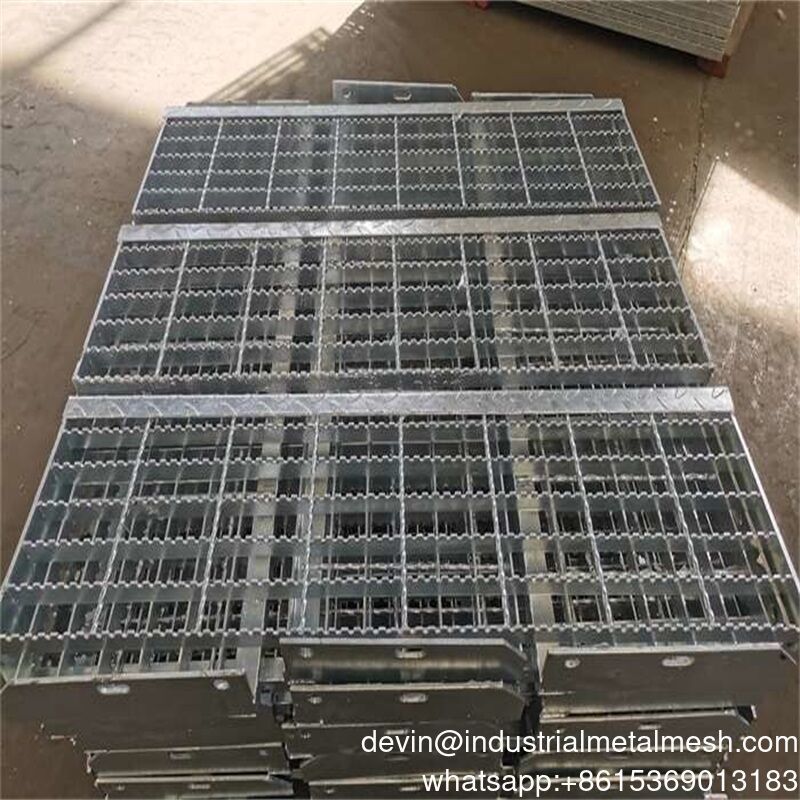

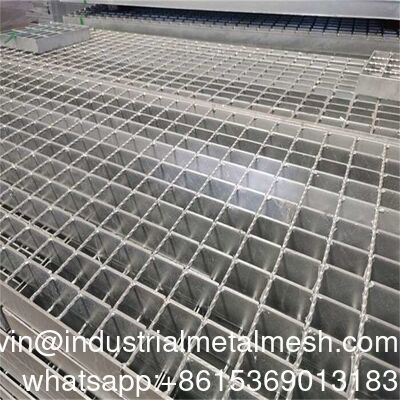

Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
| Materials | Q195, Q235 ,Q235B / 304 316 Stainless Steel |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | |
| Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc | |
| Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Grating Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | |
| UK: BS4592-1987 | |
| Australia: AS1657-1985 | |
| Japan: JJS |
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
