Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Thành phần hóa học: | Fe, C, Si, Mn, S, P | Hợp kim hay không: | không hợp kim |
|---|---|---|---|
| Năng lực giải pháp dự án: | thiết kế đồ họa, thiết kế mô hình 3D, giải pháp tổng thể cho dự án | Ứng dụng: | biệt thự |
| Xử lý bề mặt: | Mạ kẽm nhúng nóng, sơn hoặc không xử lý | chiều dài lưới: | 1000mm |
| chiều rộng lưới: | 800mm | Chiều rộng thanh chịu lực x độ dày: | 25x3mm |
| hình dạng thanh chịu lực: | Loại lưới thép kiểu chữ I trơn, có răng cưa | hình dạng thanh chéo: | tròn, xoắn, hình dạng thanh |
| Kích thước mắt lưới: | 30x100mm | E-mail: | devin@industrialmetalmesh.com |
| WhatsAPP: | +8615369013183 | ||
| Làm nổi bật: | galvanized steel bar grating,steel grating drain cover,durable walkway steel grid |
||

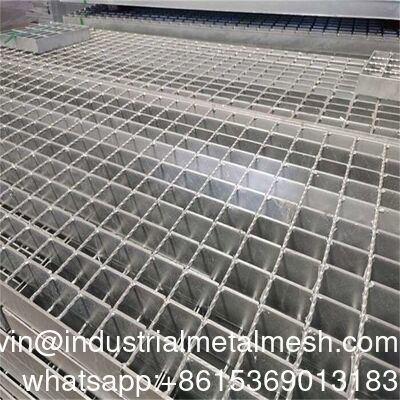

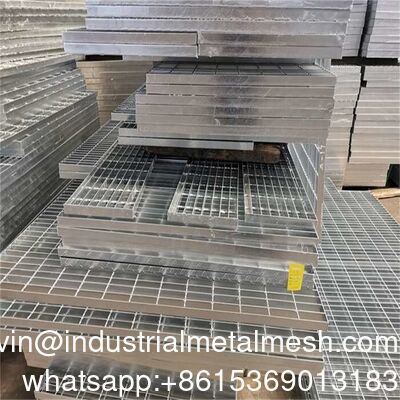

Premium Galvanized Steel Bar Grating/ Bar Grating Drain Trench Cover/ Steel Grating/Steel Grid for Durable Walkway Solutions
|
Learn more about the main components of metal bar grating
|
|
|
Material
|
Carbon Steel , Stainless Steel
|
|
surface treatment
|
Hot dip galvanizing,Painting,Spray coating,self colour
|
|
Product Process
|
Fully automatic pressure welding , manual welding
|
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
|
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
|
|
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
|
|
|
Twisted Cross Bar Pitch
|
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
|
|
Steel Grade
|
ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
|
|
Grating Standard
|
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST |
|
Russian Standard
|
|
|
Common spacing of load-bearing flat steel:
|
11, 22, 33, 44
|
|
Common spacing for connecting flat steel:
|
11, 22, 33, 66
|
|
Surface treatment
|
Plating thickness ≥70 μm
|
|
Custom specifications available upon request
|
|
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
