Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | Dây thép phủ PVC | Đường kính dây: | 2,5 mm, 3,05 mm, 3,76 mm, 4,88 mm |
|---|---|---|---|
| Lưới: | 50x50 mm, 60x60 mm | Chiều cao: | 1.5m, 1.8m, 2.4m |
| Chiều dài: | 15.2m / 50 feet | Khối lượng kẽm: | 60 g, 120 g |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Làm nổi bật: | galvanized chain link fence,construction site chain link fence,versatile chain link fence fabric |
||

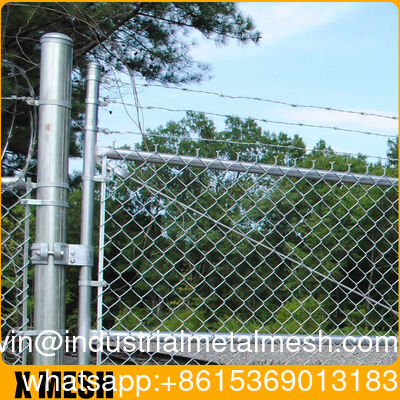

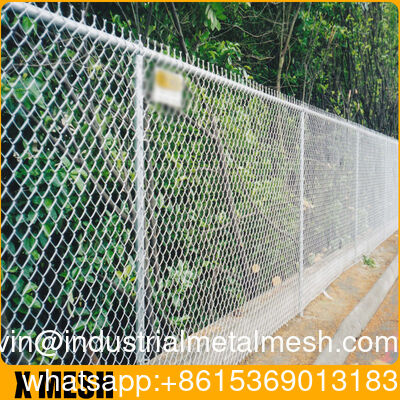

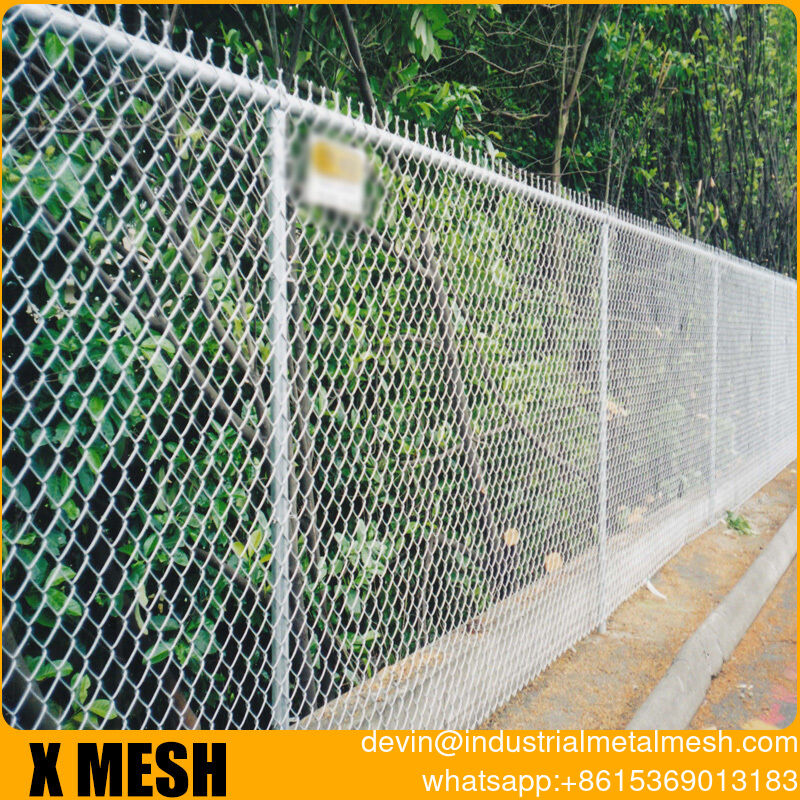

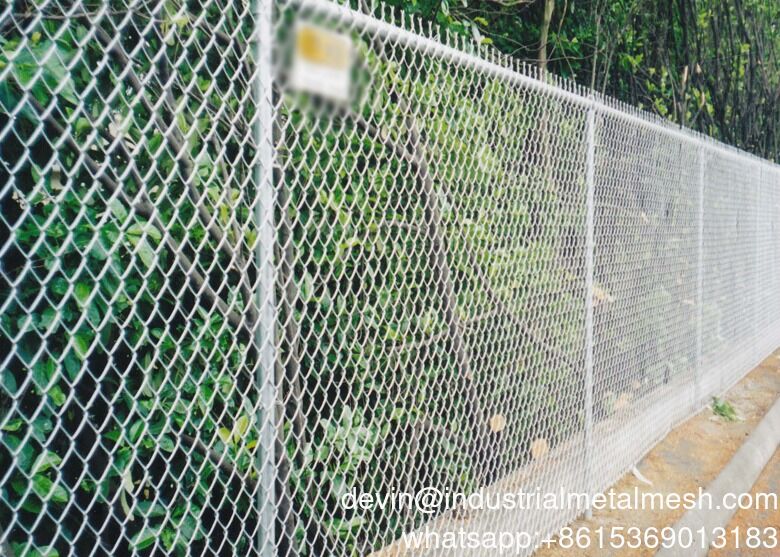

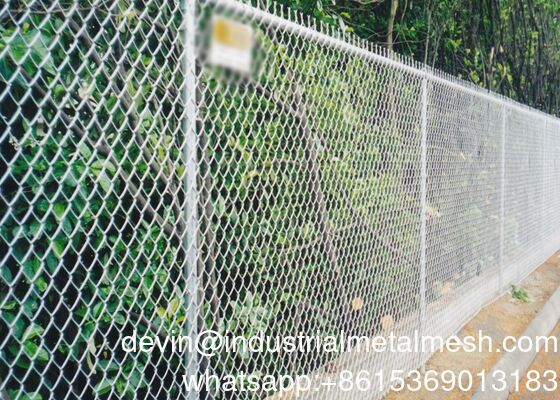

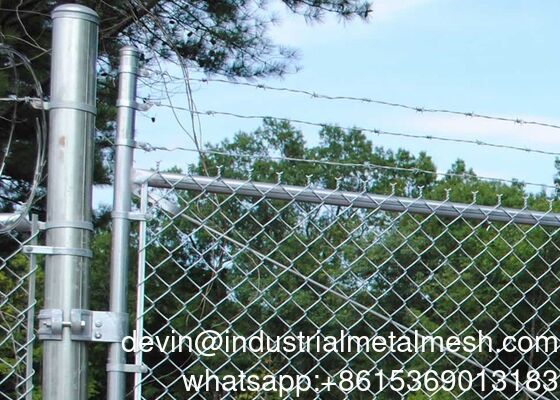

Versatile Galvanized Chain Link Fence for Construction Sites
Product descriptions
Chain link fencing is a system based on single- or double-twist wire mesh. The mesh size varies from 30 x 30 mm to 70 x 70 mm, and is diamond-shaped. The wires of a chain link fence packaged in rolls have a thickness ranging from 2 mm to 4 mm in diameter. They are made with low-carbon steel. The galvanised wire is then coated with PVC or epoxy, a coating that is perfectly resistant to UV.
Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.
drawing of chain link fence
| Material | Low carbon steel |
| Surface Treatment | Hot dipped galvanized, powder coated |
| Wire Diameter | 2.2mm,2.5mm,2.8mm,3.0mm |
| Fence Height | 1.8m |
| Fence Length | 3m, 3.6m |
| Chain Link Mesh Size | 50mm*50mm, 60mm*60mm, etc |
| Border tube | 32mm*1.2mm,32*1.5mm |
| Middle riser | 19*1.0mm,20*1.0mm,25.1.2mm |
| TYPE | HEIGHT | WIDTH | WIRE | MESH |
| FT | FT | MM | MM | |
| ZH-001 | 6 | 10 | 2.5 | 50*50 |
| ZH-002 | 6 | 10 | 2.5 | 60*60 |
| ZH-003 | 6 | 10 | 2.8 | 60*60 |
| ZH-004 | 6 | 10 | 3.0 | 60*60 |
| ZH-005 | 6 | 12 | 2.5 | 50*50 |
| ZH-006 | 6 | 12 | 2.5 | 60*60 |
| ZH-007 | 6 | 12 | 2.8 | 60*60 |
| ZH-008 | 6 | 12 | 3.0 | 60*60 |
|
Galvanized Chain Link Fence Post specifications
|
|||||
|
Post view
|
Post size
|
Rails
|
Thickness
|
Mesh Height
|
Post length
|
|
Round post
|
Φ40
Φ48 Φ60 Φ75 |
Φ32
Φ40 Φ48 |
1.5mm
1.8mm 2.0mm 2.5mm |
1.2m
1.5m 1.8m 2.0m 2.4m 2.8m 3.0m |
1.6m
2.0m 2.3m 2.5m 3.0m 3.5m 3.7m |
|
Angle iron
|
40x40mm
50x50mm 60x60mm 70x70mm |
40x40mm 50x50mm
|
4mm
5mm 6mm |
||
|
Surace treatment
|
1.Pre-galvanized tube
2.Galvanized tube powder coated 3.Hot-dipped galvanized |
||||
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);
Loading of PVC coated Chain Link Fence
install of chain link fence
4' High x 250' Galvanized Chain Link Fence Packages Include:
pvc coated chain link fence-001
galvanized chain link fence-001
galvanized chain link fence-002
galvanized chain link fence-003
galvanized chain link fence-004
galvanized chain link fence-005
