Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Hình dạng lỗ: | hình vuông, hình chữ nhật | Tấm cân: | Thay đổi tùy thuộc vào đường kính dây và kích thước tấm |
|---|---|---|---|
| Khẩu độ: | 50 * 75mm hoặc theo yêu cầu của bạn, 1/4 | Tuân thủ tiêu chuẩn: | Tiêu chuẩn ASTM, ISO, BS |
| độ dày: | 1,3mm | Xử lý bề mặt: | bọc nhựa PVC |
| Kích thước cuộn: | 24 | Màu sắc: | Bạc, Xanh, Đen (đối với PVC tráng) |
| Làm nổi bật: | 1/4 inch welded wire mesh,electro galvanized iron wire mesh,1/2 x 1/2 wire mesh |
||

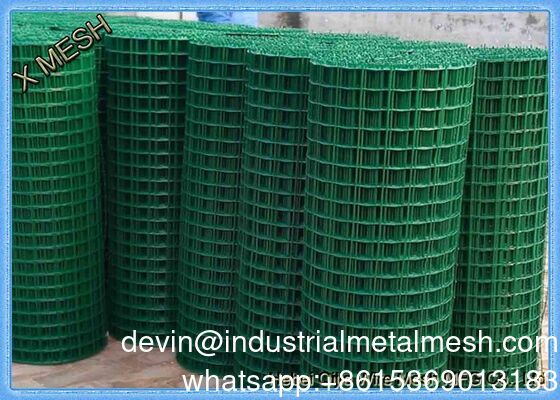

1/4"-8" Wire Mesh 1/2 X 1/ 2 1/4 Inch Electro Galvanized Welded Iron Wire Mesh
1. Welded wire mesh product description
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.
| Tolerances on Mesh Dimensions | |
| Mesh Dimensions(mm) | Tolerance(mm) |
| < 50 | ±2.0 |
| ≥50 to < 200 | ±3.0 |
| Mesh Size and Wire Diameter | ||||
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 | 0.90-1.05 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 | 1.00-1.52 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 | 1.10-2.20 |
| 15.9 | 5/8 | 21-16 | 0.81-1.65 | 1.22-2.30 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 | 1.24-2.40 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81-1.65 | 1.24-2.42 |
| 25.4 | 1 | 21-14 | 0.81-2.11 | 1.28-2.90 |
| 38.1 | 1 1/2 | 19-14 | 1.07-2.11 | 1.57-2.92 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47-2.11 | 2.00-2.95 |
| 50.8 | 2 | 16-12 | 1.65-2.77 | 2.20-3.61 |
| Welded Wire Mesh Roll Size | |
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft |
| 1/2 | 5 ft. × 50 ft. |
| 1/2 | 6 ft. × 50 ft. |
| 3/4 | 3 ft. × 50 ft |
| 3/4 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft |
| 3/4 | 6 ft. × 50 ft. |
| 1 | 3 ft. × 50 ft. |
| 1 | 4 ft. × 50 ft. |
| 1 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1" × 1" | 25 mm × 25 mm | 11 G - 14 G | 2 mm - 3 mm |
| 2" × 1" | 50 mm × 25 mm | 8 G - 14 G | 2 mm - 4 mm |
| 2" × 2" | 50 mm × 50 mm | 8 G - 14 G | 2 mm - 4 mm |
| 3" × 2" | 75 mm × 50 mm | 6 G - 14 G | 2 mm - 5 mm |
| 3" × 3" | 75 mm × 75 mm | 6 G - 14 G | 2 mm - 5 mm |
| 4" × 2" | 100 mm × 50 mm | 4 G - 14 G | 2 mm - 6 mm |
| 4" × 4" | 100 mm × 100 mm | 4 G - 14 G | 2 mm - 6 mm |
| 5" × 5" | 125 mm × 125 mm | 4 G - 14 G | 2 mm - 6 mm |
| 6" × 6" | 150 mm × 150 mm | 4 G - 14 G | 2 mm - 6 mm |
| Note: Special specifications can be customized. | |||
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.
