Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | dây thép cacbon | Mở lưới: | 12×12, 20×20, 25×25, 12×25mm |
|---|---|---|---|
| Đường kính dây: | 0,4mm - 1,5mm | Chiều rộng cuộn: | 0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m |
| Chiều dài cuộn: | 15M,30M,50M vv | Xử lý bề mặt: | Mạ kẽm nhúng nóng hoặc mạ kẽm điện |
| Số mô hình: | xx-01001 | Ứng dụng:: | Lưới hàng rào |
| E-mail: | devin@industrialmetalmesh.com | Whatsapp: | +8615369013183 |
| Làm nổi bật: | welded wire mesh for building protection,welded mesh construction materials,steel welded wire mesh |
||

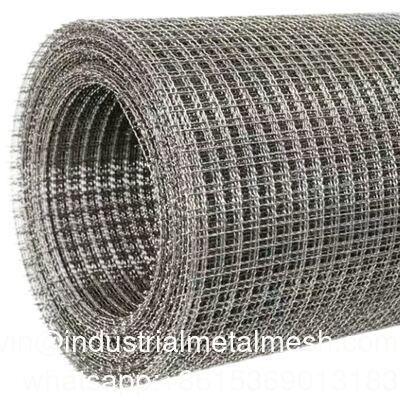

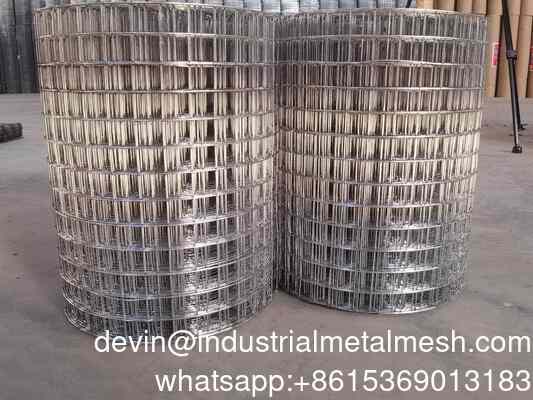

High-Quality Welded Mesh for Building Protection Materials Welded Wire Mesh
Product Description:
Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.
| Specification of Welded Wire Mesh | ||||
| Hole Size | Wire Diameter |
Wide | Electric galvanized before welded, Electric galvanized after welded, Hot dipped galvanized before welded, Hot dipped galvanized after welded, PVC coated, Stainless steel wire (SUS304,SUS316,SUS316L); |
|
| In inch | In metric unit | |||
| 1/4''X1/4'' | 6.4mmX6.4mm | BWG24-22 | 0.3-2.5m | |
| 1/4''X1/2'' | 6.4mmX12.7mm | BWG24-22 | 0.3-2.5m | |
| 1/4''X1'' | 6.4mmX25.4mm | BWG24-22 | 0.3-2.5m | |
| 1/3''X1/3'' | 8.5mmX8.5mm | BWG24-18 | 0.3-2.5m | |
| 3/8''X3/8'' | 9.5mmX9.5mm | BWG22-19 | 0.3-2.5m | |
| 1/2''X1/2'' | 12.7mmX12.7mm | BWG23-16 | 0.3-2.5m | |
| 3/4''X3/4'' | 19.1mmX19.1mm | BWG21-16 | 0.3-2.5m | |
| 1/2''X1'' | 12.7mmX25.4mm | BWG21-16 | 0.3-2.5m | |
| 1-1/2''X1-1/2'' | 38mmX38mm | BWG19-14 | 0.3-2.5m | |
| 1''X1'' | 25.4mmX25.4mm | BWG19-14 | 0.3-2.5m | |
| 2''X2'' | 50.8mmX50.8mm | BWG15-12 | 0.3-2.5m | |
| 4''X4'' | 101.6mmX101.6mm | BWG15-12 | 0.3-2.5m | |
| Note: Special specification can be made according to customer's requires. | ||||
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
