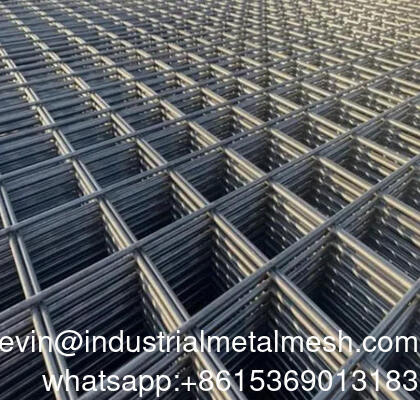

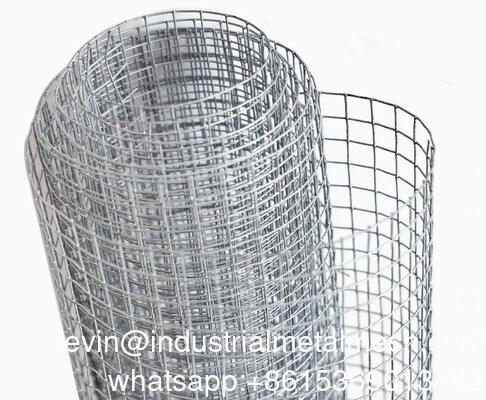

PVC Coated Welded Wire Mesh Sheet Fence Metal Protect Mesh

PVC Coated Welded Wire Mesh Sheet Fence Metal Protect Mesh

Product Description:

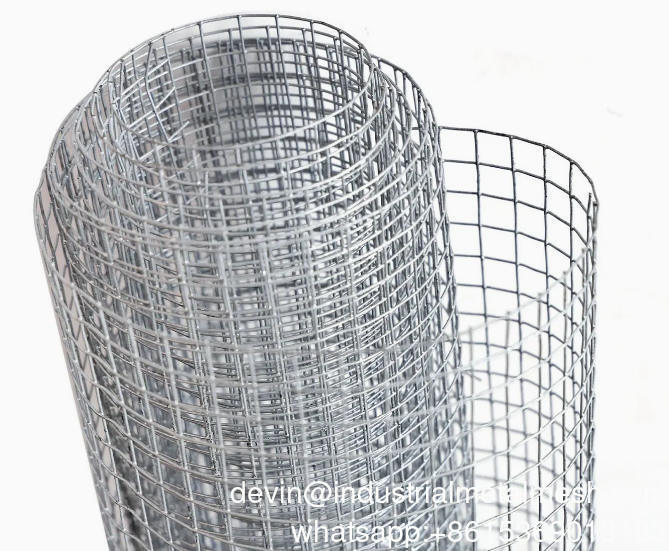

Welded wire mesh can come as coils /rolls or flat panels and sheets. It can be constructed from low carbon and stainless steel. Surface treatment can be electro galvanized an hot dipped galvanized, also can be PVC coated or Powder coating.



Construction welded mesh is a durable reinforcing material widely used in buildings, bridges, highways, tunnels, and foundations. Available in cold rolled, hot rolled, galvanized, epoxy coated, stainless steel, and rebar mesh, it offers crack resistance, corrosion protection, quick installation, and cost efficiency, providing reliable reinforcement for various projects.

Product Description

Opening		Wire Diameter
Inch	metric Unit(mm)
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Note:Special specification can be made according to customers requires



Material	Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire
Process	Welded after galvanized and galvanized after welding
Mesh	25*25mm, 50*50mm, 1*1, 2*2inch, 3*3inch, 75mm x 150mm, etc
Size	4*8FT, 1*2M, 1800mm x 3000mm(or we can make as customer request)
PVCCoating Thickness	0.5mm ~ 1.0mm
Packing	Bare or pallet

Product Name	welded wire mesh panel
Wire diameter	3mm 4mm 4.8mm 5mm 6mm,8mm or as your requirement
Mesh size	75x75mm, 50x50mm 100x100mm, 120x120mm,150x150mm or as your request
Panel size	1x2m, 1.5 x2.2m, 2.2x5.8m, 2.4mx6m or as your request
Surface treatment	hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated
Applications	Wire Fencing And Building Material





1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 materialCharacteristics of stainless steel 304D

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe



Key Applications:
Security cages, Fence reinforcement, Pet enclosures, Aviaries, Small animal hutches, Rabbit runs, Pond cover/ protection, and Garden fencing.

Key Features:
Galvanized wire protects the steel from rust and improves the longevity of the panel.
Easy to cut and bend the wire panels using wire cutters.
Can be bent and manipulated to fit structures.
Ideal for fencing, animal cages, aviaries, and more.



Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable

Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.




Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
