Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | Dây thép cacbon | Mở lưới: | 12×12, 20×20, 25×25, 12×25mm |
|---|---|---|---|
| Đường kính dây: | 0,4mm - 1,5mm | Chiều rộng cuộn: | 0,4m, 0,5m, 0,6m, 0,8m, 1,0m, 1,25m, 1,5m, 2,0m |
| Chiều dài cuộn: | 15M, 30M, 50M, v.v. | Xử lý bề mặt: | Mạ kẽm nhúng nóng hoặc mạ điện |
| Số mô hình: | xx-01001 | Ứng dụng:: | lưới hàng rào |
| E-mail: | devin@industrialmetalmesh.com | whatsapp: | +8615369013183 |
| Làm nổi bật: | custom welded wire mesh panels,welded wire mesh various gauges,factory direct wire mesh panels |
||
Custom Welded Wire Mesh Panels - Various Gauges & Opening Sizes Factory Direct

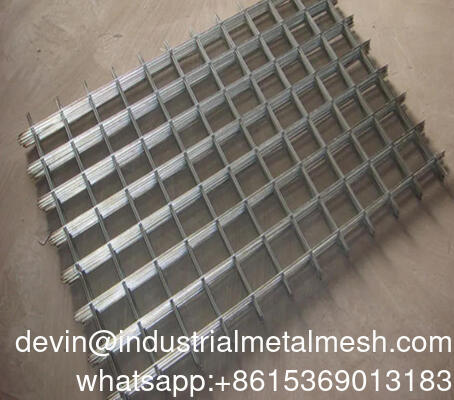

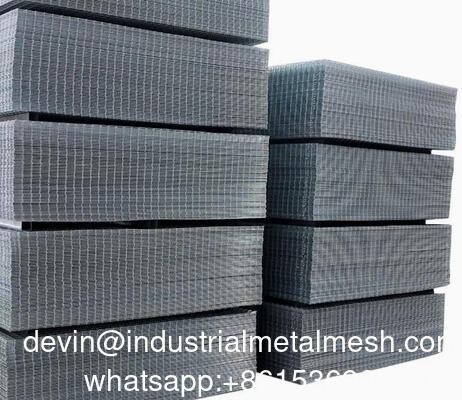

Welded mesh panel is a kind of steel panel welded by steel bars or metal wires, also known as welded steel panel, welded steel mesh, etc. Welded mesh panels are usually made of horizontal and vertical steel bars or wires, and the welding points are usually fixed by resistance welding or arc welding to form a grid structure with certain strength and rigidity.
| Opening() | Opening() | Wire diameter(BWG) | Wire diameter() |
| 1" × 1" | 25mm×25mm | 14# - 11# | 2.0mm - 3mm |
| 2" × 1" | 50mm×25mm | 14# - 8# | 2.0mm - 4mm |
| 2" × 2" | 50mm×50mm | 14# - 8# | 2.0mm - 4mm |
| 3" × 2" | 75mm×50mm | 14# - 6# | 2.0mm - 5mm |
| 3" × 3" | 75mm×75mm | 14# - 6# | 2.0mm - 5mm |
| 4" × 2" | 100mm×50mm | 14# - 4# | 2.0mm - 6mm |
| 4" × 4" | 100mm×100mm | 14# - 4# | 2.0mm - 6mm |
| 5" × 5" | 125mm×125mm | 14# - 4# | 2.0mm - 6mm |
| 6" × 6" | 150mm×150mm | 14# - 4# | 2.0mm - 6mm |
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
