| Vật liệu: | Dây thép cacbon | Mở lưới: | 12×12, 20×20, 25×25, 12×25mm |
|---|---|---|---|
| Đường kính dây: | 0,4mm - 1,5mm | Chiều rộng cuộn: | 0,4m, 0,5m, 0,6m, 0,8m, 1,0m, 1,25m, 1,5m, 2,0m |
| Chiều dài cuộn: | 15M, 30M, 50M, v.v. | Xử lý bề mặt: | Mạ kẽm nhúng nóng hoặc mạ điện |
| Số mô hình: | xx-01001 | Ứng dụng:: | lưới hàng rào |
| E-mail: | devin@industrialmetalmesh.com | whatsapp: | +8615369013183 |
| Làm nổi bật: | 4mm thick welded wire mesh,8 gauge galvanized mesh panel,welded wire mesh with galvanized coating |
||

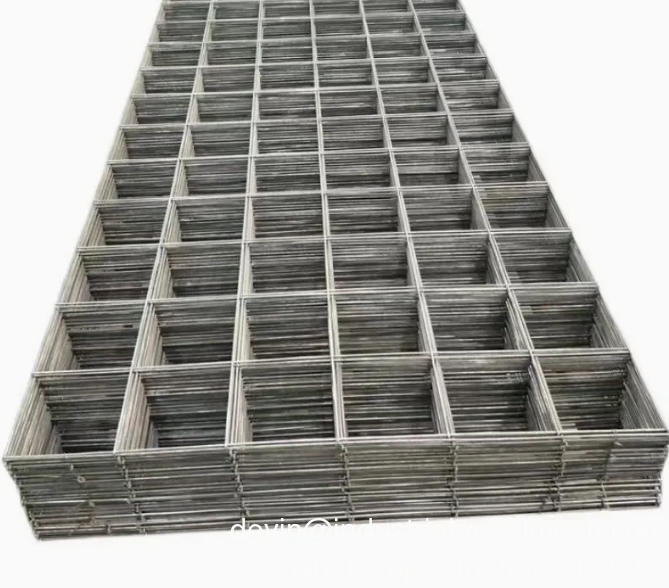

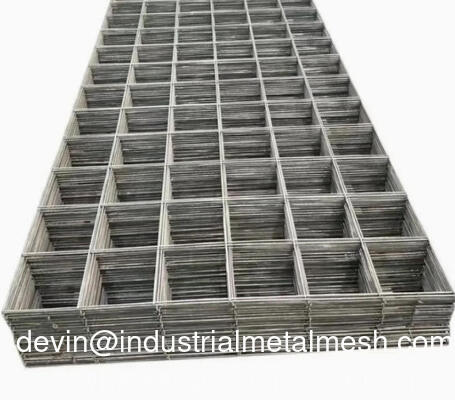

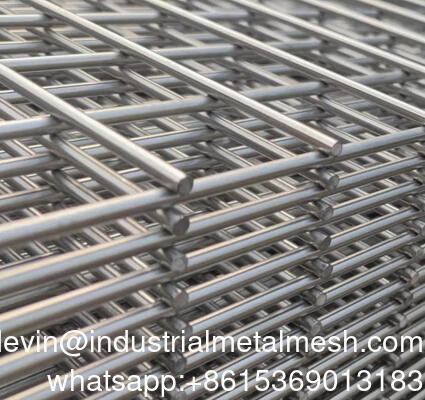

4mm Thickness Welded Wire Mesh 8 Gauge Galvanized Welded Mesh Panel
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
Welded wire mesh can be divided into 2 types according to different applications: welded mesh panel and welded mesh roll, and welded mesh roll has better flexibility. We support customization of other requirements.
The core advantages of welded wire mesh are high strength, corrosion resistance, convenient installation, beautiful and practical, which can not only meet functional requirements, but also adapt to diverse scenarios. Choosing different treatment processes (such as zinc plating, stainless steel, plastic coating) and mesh density according to specific uses can maximize its value.
They are usually made of horizontal and vertical steel bars or wires and the welding points are usually fixed by resistance welding or arc welding to form a grid structure with certain strength and rigidity. Welded mesh panel is widely used, such as machinery, fences, guardrails, etc.
|
Specification Of Welded Wire Mesh Panel
|
|||
|
Opening
|
Wire diameter
|
||
|
Inch
|
mm
|
BWG
|
mm
|
|
1" × 1"
|
25mmx25mm
|
14# - 11#
|
2.0mm - 3mm
|
|
2" × 1"
|
50mmx25mm
|
14# - 8#
|
2.0mm - 4mm
|
|
2" × 2"
|
50mmx50mm
|
14# - 8#
|
2.0mm - 4mm
|
|
3" × 2"
|
75mmx50mm
|
14# - 6#
|
2.0mm - 5mm
|
|
3" × 3"
|
75mmx75mm
|
14# - 6#
|
2.0mm - 5mm
|
|
4" × 2"
|
100mmx50mm
|
14# - 4#
|
2.0mm - 6mm
|
|
4" × 4"
|
100mmx100mm
|
14# - 4#
|
2.0mm - 6mm
|
|
5" × 5"
|
125mmx125mm
|
14# - 4#
|
2.0mm - 6mm
|
|
6" × 6"
|
150mmx150mm
|
14# - 4#
|
2.0mm - 6mm
|
|
Material: Low carbon steel wire
|
|||
|
Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated
|
|||
|
Note: Special size and specifications can be made according to customers requires.
|
|||
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
