Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | Dây thép cacbon | Mở lưới: | 12×12, 20×20, 25×25, 12×25mm |
|---|---|---|---|
| Đường kính dây: | 0,4mm - 1,5mm | Chiều rộng cuộn: | 0,4m, 0,5m, 0,6m, 0,8m, 1,0m, 1,25m, 1,5m, 2,0m |
| Chiều dài cuộn: | 15M, 30M, 50M, v.v. | Xử lý bề mặt: | Mạ kẽm nhúng nóng hoặc mạ điện |
| Số mô hình: | xx-01001 | Ứng dụng:: | lưới hàng rào |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Làm nổi bật: | galvanized welded wire mesh,3/8 welded wire mesh,electrical welded wire mesh 30m |
||

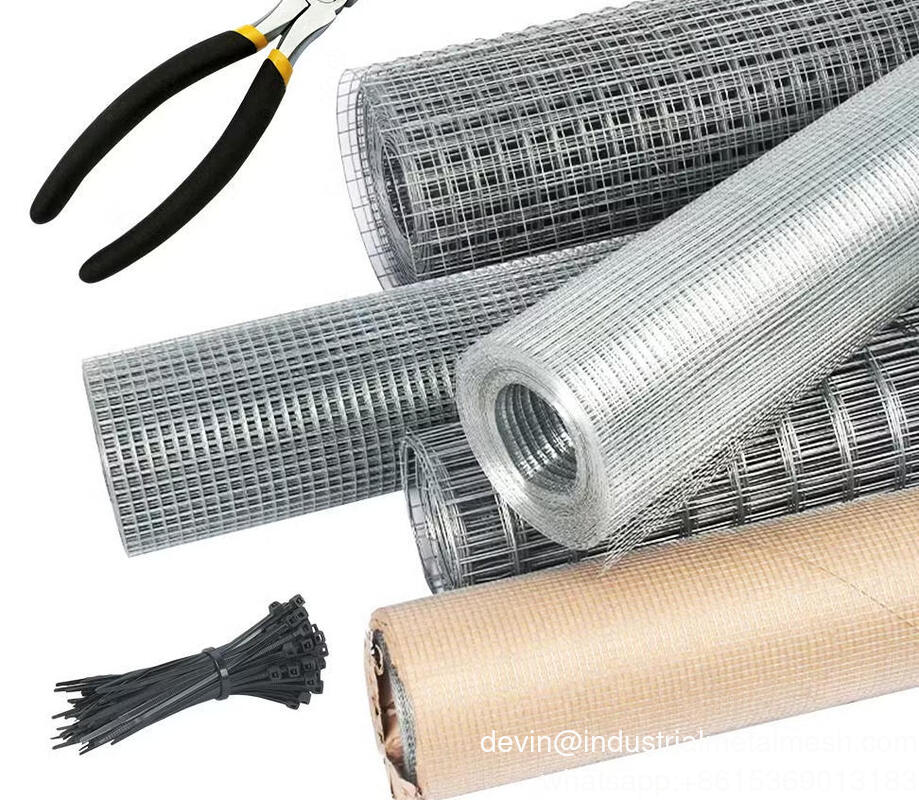

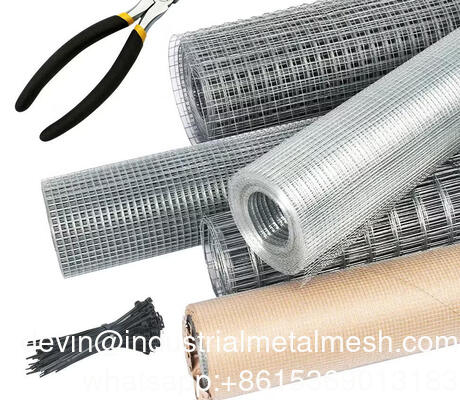

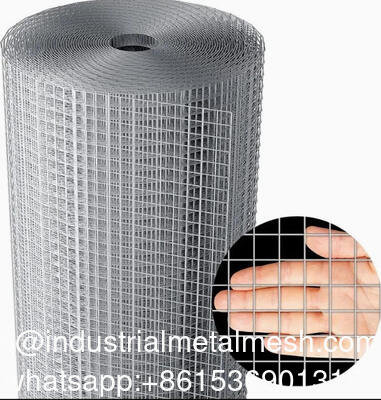

Electrical Galvanized Welded Wire Mesh 3/8X24bwg0.9X30m
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Specification of Welded Wire Mesh | ||||
| Opening | Wire Diameter |
Width 0.4-2M
Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| In inch | In metric unit | |||
| 1/4" x 1/4" | 6.4 x 6.4mm | BWG24-22 | ||
| 3/8" x 3/8" | 10.6x 10.6mm | BWG22-19 | ||
| 1/2" x 1/2" | 12.7 x 12.7mm | BWG23-16 | ||
| 5/8" x 5/8" | 16x 16mm | BWG21-18 | ||
| 3/4" x 3/4" | 19.1 x 19.1mm | BWG21-16 | ||
| 1" x 1/2" | 25.4x 12.7mm | BWG21-16 | ||
| 1-1/2" x 1-1/2" | 38 x 38mm | BWG19-14 | ||
| 1" x 2" | 25.4 x 50.8mm | BWG16-14 | ||
| 2" x 2" | 50.8 x 50.8mm | BWG15-12 | ||
| 2" x 4" | 50.8 x 101.6mm | BWG15-12 | ||
| 4" x 4" | 101.6 x 101.6mm | BWG15-12 | ||
| 4" x 6" | 101.6 x 152.4mm | BWG15-12 | ||
| 6" x 6" | 152.4 x 152.4mm | BWG15-12 | ||
| 6" x 8" | 152.4 x 203.2mm | BWG14-12 | ||
| Note: Special specifications can be made according to customers requires. | ||||
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Applications:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
Người liên hệ: Mr. Devin Wang
Fax: 86-318-7896133
